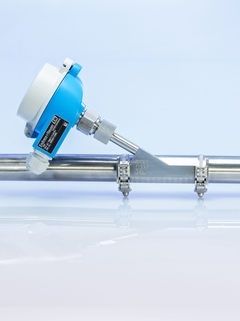

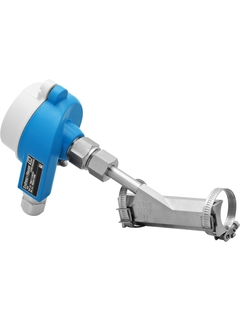

Version with aluminium terminal head TA30A, 20° angle, DN25, 1 ", outside pipe ⌀ 33.7 mm
Краткие характеристики
Погрешность
depending on application Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
The non-invasive thermometer iTHERM SurfaceLine TM611 is used across all industries to measure temperature without the risk of leakage and process disruption. The device is safe and easy to install and provides the same accuracy and response time as invasive temperature measurement. A specially designed thermal coupling element provides ideal thermal conductivity to the sensor and reduces ambient influences, resulting in superior measurement performance even compared to electronic compensation.
Can be used universally in all industries
Ideal for demanding process conditions such as high flow velocities, high process pressures, highly viscous or corrosive media, abrasion, pigging or small pipe diameters

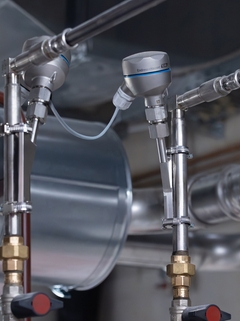

Perfect for subsequent installation for measurements in existing facilities for energy and safety monitoring
Преимущества
Measurement accuracy and response time comparable with invasive measurements
No process opening required, no leakage risk
Increased safety for personnel, plant and the environment
User-friendly from product selection to installation and maintenance
Significant cost savings: shorter development and project planning times, reduced expenses for installation, certification and inspections as well as no costs for thermowells, nozzles and flanges, weld seam inspections and pipe extensions.

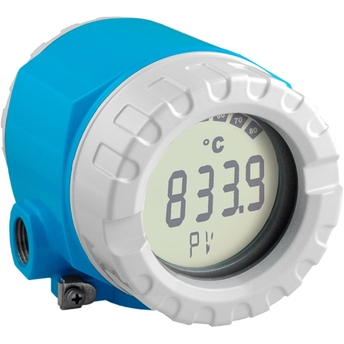

iTEMP temperature transmitter with all standard communication protocols and optional Bluetooth® connectivity
International certification: e.g. explosion protection according to ATEX, IECEx, CSA and NEPSI; functional safety (SIL)
The Ziegler-Natta process uses hazardous chemicals like titanium tetrachloride. Precise temperature measurement is crucial to prevent runaway reactions and ensure safety and efficiency.
To meet the challenges of temperature monitoring in such critical processes, a thermowell design has been developed that responds to process changes up to five times faster than standard designs.
The inner temperature of the reactors during the sulfur reaction must be continuously and accurately monitored to prevent plant shutdowns and optimize the energy consumption.

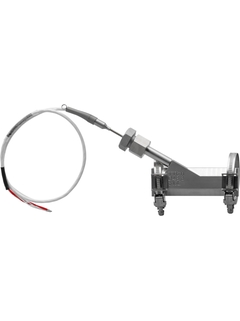

non-invasive thermometer cable probe or modular thermometer suitable for high process pressures surface mounting
Термогильза / защитная трубка
without (not intended to use with thermowell)
Вставка/чувствительный элемент
non exchangeable RTD or TC insert
Внешний диаметр защитной трубки / вставки

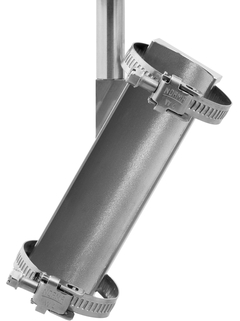

Geometry of coupling element is designed according to diameter of process piping
Присоединение к процессу

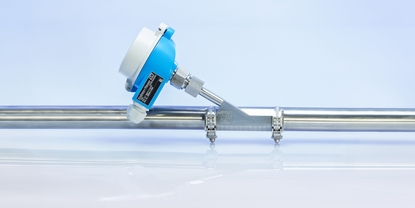

surface mounting
Диапазон рабочих температур
-196 °C…400 °C (-320,8 °F...752 °F)
Погрешность
depending on application Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
Термометр для поверхности Бесконтактный термометр сопротивления / термопарный термометр с высокой производительностью измерения для сложных областей применени я
Интерфейс связи: WirelessHART Скорость передачи: номинальная 250 кБит/с Рабочая частота: 2,4 ГГц (диапазон ISM) Дальность связи при стандартных условиях: Вне помещений 250 м, в помещениях 50 м
Active barrier, 1 channel for 4 to 20 mA, HART® transparent with 24 to 230 V AC/DC as well as active/passive input and output, optionally with SIL and Ex
Интерфейс связи: WirelessHART Скорость передачи: номинальная 250 кБит/с Рабочая частота: 2,4 ГГц (диапазон ISM) Дальность связи при стандартных условиях: Вне помещений 250 м, в помещениях 50 м
Active barrier, 1 channel for 4 to 20 mA, HART® transparent with 24 to 230 V AC/DC as well as active/passive input and output, optionally with SIL and Ex
