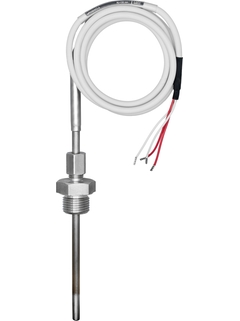

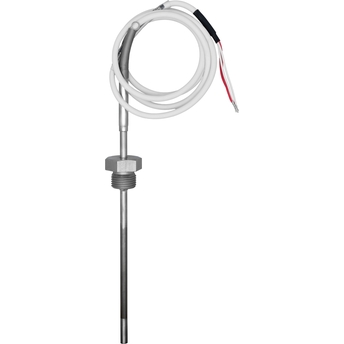

Pt100 RTD thermometer TST310 temperature cable probe

iTHERM CableLine TST310
Cable probe

Metric RTD thermometer with connecting cable for use in many process and laboratory applications

TST310
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Pt100 RTD thermometer TST310 temperature cable probe
  • F
  • L
  • E
  • X
©Endress+Hauser
Pt100 RTD thermometer TST310 temperature cable probe
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    t50 = 3 s
    t90 = 6 s

  • Max. process pressure (static)

    at 20°C: up to 75 bar (depending on the process connection)

  • Operating temperature range

    PT 100:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

Field of application

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.

Benefits

  • High flexibility through user-specific insertion lengths and variable process connections

  • Fast response time

  • Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)

  • Marine approval

Fundamental selection

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

FLEX: Fundamental ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
