Specs at a glance
-
Accuracy
Rod probe: +/- 2 mm (0.08 in)
Rope probe: +/- 2 mm (0.08 in) -
Process temperature
-20...+80 °C
(-4...+176 °F) -
Process pressure / max. overpressure limit
Vacuum...6 bar,
(Vacuum...87 psi) -
Max. measurement distance
Rod: 4 m (13 ft) Min DK>1.6
Rope: 12 m (40 ft) Min DK>1.6 -
Main wetted parts
Rod probe: 316L, PPS, Viton
Rope probe: 316, PPS, Viton
Field of application

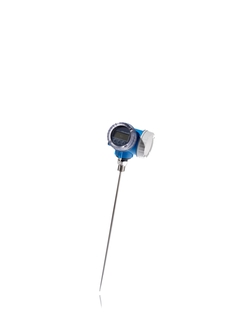

Levelflex FMP50 is the instrument for basic applications in liquids which do not place high demands on temperature and pressure ranges or chemical resistance. Particularly in basic supply or storage applications as well as utility processes FMP50 is the best choice. Levelflex FMP50 guided radar is used for continuous level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

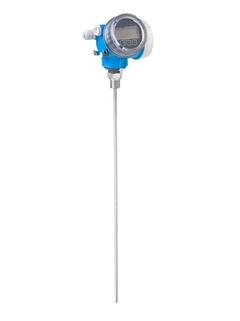

Version with rod or rope probe.
Process connections: Thread or adapter flange
Temperature: -20 to +80°C (-4 to +176°F)
Pressure: -1 to +6bar (-14.5 to +87psi)
Maximum measuring range: Rod 4m (13ft), rope 12m (39ft)
Accuracy: ±2mm (0.08")
International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
Benefits
Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test for SIL and WHG saves time and costs
Videos
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Could also interest you
Most downloaded
-
-
Explosion Protection
Product family: Levelflex
English version - 05/2024
Product root: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57- Region: Europe (ATEX) Approval agency: Endress+Hauser Protection: Ex e, Ex i
EN 07/05/2024Language:
English
Version:
07/05/2024
File size:
1.2 MB
File name:
EU_00955_03.24.pdf
-
-
-
Explosion Protection
Product family: Levelflex
Russian version - 02/2018
Product root: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57- Region: Eurasian Economic Union Approval agency: EAC Protection: Ex ia, Ex ic, Ex ic [ia Ga] 900 900 900, 080~175 900 900 900, Ex ta, Ex ia/d [ia] 900, 080~310 900 900 900, Ex ta/tb
Language:
Russian
Version:
09/02/2018
File size:
1.5 MB
File name:
TC RU C-DE.AA87.B.00877.pdf
-
297 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
TI Levelflex FMP50
Guided-wave radar
EN 01/10/202422/02/202330/06/202231/07/202012/04/2018Language:
English
Version:
01/10/2024
File size:
3.1 MB
File name:
TI01000FEN_2724-00.pdf
-
-
-
Operating Instruction (BA)
BA Levelflex FMP50 FOUNDATION Fieldbus
Guided-wave radar
EN 01/10/202421/02/202330/06/202212/04/201809/11/2017Language:
English
Version:
01/10/2024
File size:
5.2 MB
File name:
BA01051FEN_0924-00.pdf
-
-
-
Operating Instruction (BA)
BA Levelflex FMP50 HART
Guided-wave radar
EN 01/10/202413/12/202230/06/202231/07/202012/04/2018Language:
English
Version:
01/10/2024
File size:
4.5 MB
File name:
BA01000FEN_2424-00.pdf
-
-
-
Operating Instruction (BA)
BA Levelflex FMP50 PROFIBUS PA
Guided-wave radar
EN 01/10/202421/02/202330/06/202212/04/201809/11/2017Language:
English
Version:
01/10/2024
File size:
4.1 MB
File name:
BA01005FEN_2024-00.pdf
-
-
-
Device Parameter (GP)
Levelflex FMP5x HART Description of Device Parameters
Guided wave radar
EN 28/04/201630/10/201426/02/201429/07/201101/10/2010Language:
English
Version:
28/04/2016
File size:
3.3 MB
File name:
GP01000FEN_1616.pdf
-
-
-
Device Parameter (GP)
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57 PROFIBUS PA Description of Device Parameters
Guided wave radar
EN 30/10/201404/08/2011Language:
English
Version:
30/10/2014
File size:
4.7 MB
File name:
GP01001FEN_1314.pdf
-
-
-
Device Parameter (GP)
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57 FOUNDATION Fieldbus Description of Device Parameters
Guided wave radar
EN 09/06/201527/04/2012Language:
English
Version:
09/06/2015
File size:
3.5 MB
File name:
GP01015FEN_0215.pdf
-
-
-
Short Instruction (KA)
Levelflex FMP50 HART
Guided wave radar
EN 30/06/202212/04/201830/11/201717/11/201712/02/2015Language:
English
Version:
30/06/2022
File size:
1.4 MB
File name:
KA01053FEN_2022-00.pdf
-
-
-
Short Instruction (KA)
Levelflex FMP50 PROFIBUS PA
Guided wave radar
EN 30/06/202212/04/201817/11/201712/02/201514/12/2012Language:
English
Version:
30/06/2022
File size:
1.2 MB
File name:
KA01071FEN_1722-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Housing filter Brass/Ni GT19/20, 1 set
-
Filter
Drawing numberOrder code1971115175 -
-
Set housing securing clamps
-
Housing/housing accessories
Drawing numberOrder code1771115176 -
-
Cover GT19 PBT, sight glass, EPDM
-
Cover
Drawing numberOrder code2071110292 -
-
Cover GT19 PBT, EPDM
-
Cover
Drawing numberOrder code2071110293 -
-
Cover GT19 PBT, Terminal Ex, EPDM
-
Cover
Drawing numberOrder code2571110295 -
-
Cover GT20 Alu, sight glass, HNBR
-
Cover
Drawing numberOrder code2071110297 -
-
Cover GT20 Alu, HNBR
-
Cover
Drawing numberOrder code2071110299 -
-
Cover GT20 Alu, Terminal, OVP, HNBR
-
Cover
Drawing numberOrder code2571185517 -
-
Cover GT19 PBT, Terminal, OVP, EPDM
-
Cover
Drawing numberOrder code2571185518 -
-
Cover GT20 Alu, Terminal Ex, HNBR
-
Cover
Drawing numberOrder code2571110301 -
-
Cover GT20 Alu, Terminal Ex d, HNBR
-
Cover
Drawing numberOrder code2571110302 -
-
Sealing set GT18/GT19/GT20, EPDM, HNBR
-
Sealing
Drawing numberOrder code6571110303 -
-
Plug M12, IP66/68 NEMA4X/6P, ProToF
-
further parts
Order code71450381 -
-
I/O module 2-wire, 4-20mA, HART, Ex, V2
-
I/O module
Drawing numberOrder code3471108594 -
-
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
-
I/O module
Drawing numberOrder code3471108595 -
-
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
-
I/O module
Drawing numberOrder code3471108595 -
-
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
-
I/O module
Drawing numberOrder code3471108595 -
-
I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1
-
I/O module
Drawing numberOrder code3471108599 -
-
I/O module, 2-wire, PA, PFS, Ex, V1
-
I/O module
Drawing numberOrder code3471108603 -
-
I/O module, 2-wire, PA, PFS, Ex, V1
-
I/O module
Drawing numberOrder code3471108603 -
-
I/O module, 2-wire, PA, PFS, Ex, V1
-
I/O module
Drawing numberOrder code3471108603 -
-
I/O module, 2-wire, PA/FF, PFS, Ex, V2
-
I/O module
Drawing numberOrder code3471164940 -
-
I/O module, 2-wire, PA/FF, PFS, Ex, V2
-
I/O module
Drawing numberOrder code3471164940 -
-
I/O module, 2-wire, PA/FF, PFS, Ex, V2
-
I/O module
Drawing numberOrder code3471164940 -
-
I/O module, 2-wire, PA/FF, PFS, Ex, V2
-
I/O module
Drawing numberOrder code3471164940 -
-
I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2
-
I/O module
Drawing numberOrder code3471187812 -
-
I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2
-
I/O module
Drawing numberOrder code3471207473 -
-
I/O mod. Level, 2-wr.2x4-20mA,HART,Ex,V2
-
I/O module
Drawing numberOrder code3471207474 -
-
I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2
-
I/O module
Drawing numberOrder code3471207475 -
-
Terminal set 4-wire, I/O module
-
Terminals
Drawing numberOrder code3771110279 -
-
Terminal set 2-wire, I/O module
-
Terminals
Drawing numberOrder code3771110280 -
-
Transmitter electronics FHX50
-
further parts
Order code71197334 -
-
M12-female plug connector, VA
-
further parts
Order code71296840 -
-
Cable FHX50, FHX50B, 5m
-
further parts
Order code71206552 -
-
Cable FHX50, FHX50B, 10m
-
further parts
Order code71206554 -
-
Cable FHX50, FHX50B, 20m
-
further parts
Order code71206555 -
-
Cable FHX50, FHX50B, 30m
-
further parts
Order code71206556 -
-
Electronics Levelflex FMP5x
-
Electronic
Drawing numberOrder code30XPF0001- -
-
Display module, SD02, push buttons
-
Display
Drawing numberOrder code40XPD0024- -
-
Display module, SD03, Touch Control
-
Display
Drawing numberOrder code40XPD0025- -
-
Weight FMP5x, rope 4mm 1/6", 316L
-
Weights
Drawing numberOrder code5671114452 -
-
O-ring 7.59x 2.62, FKM Viton, 5 pieces
-
Sealing
Drawing numberOrder code5771114459 -
-
HF-Coax cable L=3m/9ft, plug
-
Cable/cable accessories
Drawing numberOrder code7071114823 -
-
HF-Coaxcable L=6m/18ft, plug
-
Cable/cable accessories
Drawing numberOrder code7071235564 -
-
HF-Coaxcable L=9m/27ft, plug
-
Cable/cable accessories
Drawing numberOrder code7071235578 -
-
Spare parts set - retrofit kit FHX50
-
further parts
Order code71248380 -
-
Probe FMP50 w/o process connection
-
Sensoric
Drawing numberOrder code55XPF0003- -
-
Spare RFID TAG
-
further parts
Order codeXPRFID- -
-
Sealing ring G3/4, 27x32, FA, 5 pcs.
-
Sealing
Drawing numberOrder code5771185027 -
-
Overvoltage protection (OVP10),1-Channel
Order code71128617 -
Overvoltage protection (OVP20),2-Channel
Order code71128619 -
Rope centering star, PEEK, 48-95mm, 1 pc
Order code71373490 -
Rope centering star, PEEK, 48-95mm, 5 pc
Order code71373492 -
Bluetooth module (BT10)
Order code71377355 -
Mountingset Cerabar,Deltapilot,Levelflex
Order code71102216 -
Weather prot. cover GT18/GT19/GT20, 316L
Order code71162242 -
Isolation tie down of the 4mm rope probe
Order code52014249
